Fan & HVAC

Air Handling Unit Fan

AHU

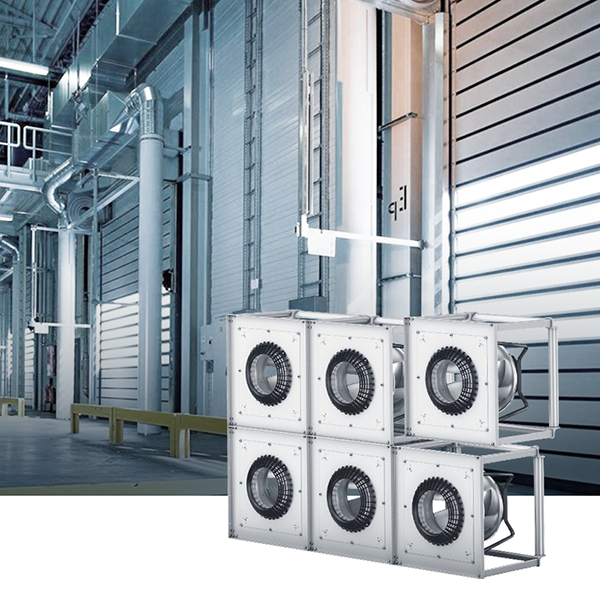

Integrating a large forward-curved fan, high-efficiency EC-PMSM motor, and controller, the AHU fan features a single-motor, dual-shaft design that delivers airflow of up to 2,000 CFM. It is ideal for ventilation and air circulation in large commercial buildings, precision manufacturing facilities, data centers, public facilities, and healthcare environments.

■ High Airflow: Single-motor, dual-shaft design delivers up to 2,000 CFM.
■ High Efficiency and Low Harmonics: Combines a high power factor with low harmonic distortion.
■ Flexible Speed Control: Supports five-speed settings, VR analog adjustment, and RS485 communication.
■ Intelligent Group Control: Enables centralized control and management of multiple units via Modbus.
For Forward-Curved Blower
AHU AHU-#800 AHU-#1200 AHU-#1600 AHU-#2000
Motor Ø98-EC-PMSM
Internal rotor
Ø125-EC-PMSM
Internal rotor
Ø125-EC-PMSM
Internal rotor
Ø125-EC-PMSM
Internal rotor
Input 1Ø / 200–240±10% Vac / 50Hz–60Hz
Consumption (W) 30–240 40–350 50–500 55–1000
Rated Current (A) 1.1 1.75 2.5 5
Speed (rpm) 500 rpm–1350 rpm
Efficiency / PFC Efficiency > 80% & Power Factor (PF) > 95% at rated load
Air Flow (CFM) 800 (Single Shaft) 1200 (Single Shaft) 1600 (Dual Shaft) 2000 (Dual Shaft)
For Backward-Curved Blower
AHU AHU-#F450 AHU-#F500 AHU-#F580
Motor Ø180-EC-PMSM
Outer rotor
Input 3Ø / 380±10% Vac / 50Hz–60Hz
Consumption (W) 3700
Rated Current (A) 6
Speed (rpm) 300 rpm–1750 rpm
Efficiency / PFC Efficiency > 90% & Power Factor (PF) > 95% at rated load
Air Flow (CFM) 7000 (450 mm Centrifugal Fan) 9500 (500 mm Centrifugal Fan) 14000 (580 mm Centrifugal Fan)
